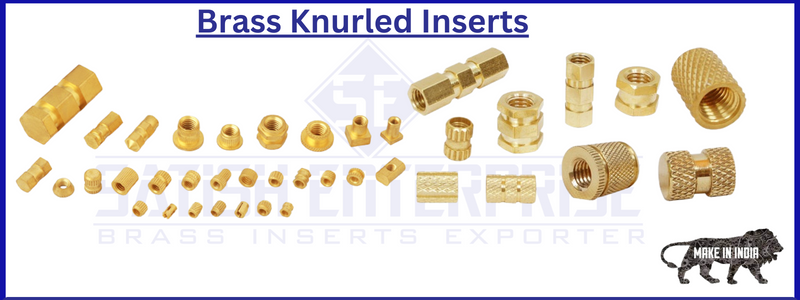

Brass Knurled Inserts
The leading manufacturer of Brass Knurled Inserts for plastic industries, communication devices, automotive industries, electrical and wiring device casings, etc. is Satish Enterprise Components. For all installation procedures, including ultrasonic, heat, thermal, press-in, and mold-in, we supply a complete line of inserts.
Despite the fact that we make a variety of brass knurling inserts based on customer design and specification, we also sell basic threaded insert series such as straight hole, blind (closed bottom), collar inserts, ultrasonic, push-in, tri-slotted inserts, etc.

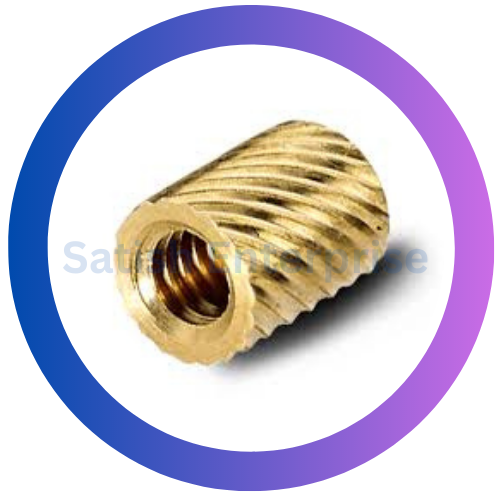

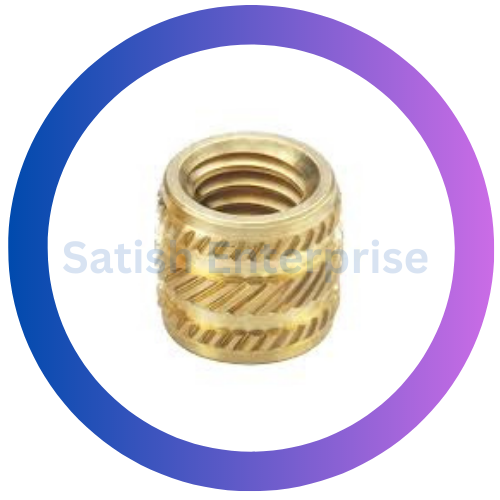

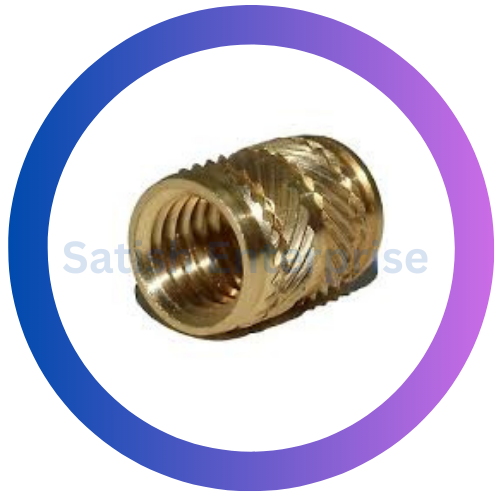

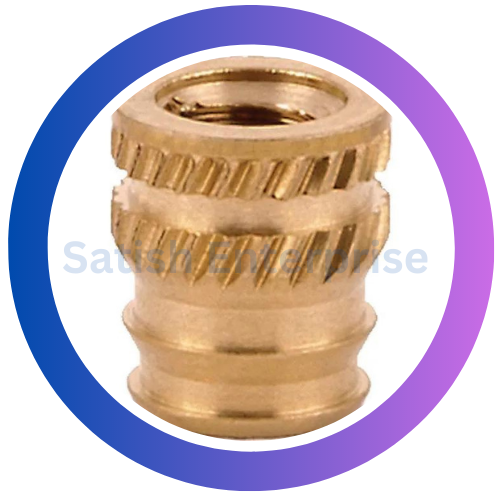

We are one of the leading manufacturers, suppliers, and exporters of brass knurled inserts in the world. Our very precise knurling inserts are offered with cross knurling, straight knurling, and diamond knurling for improved grip in different moldings.
Our professional and skilled team members create error-free inserts that are sturdy, low-weight, and easy to install, which is why they are highly appreciated by our precious clients.
 |
 |
 |
 |
 |
 |
 |
 |
Specification of Brass Knurled Inserts
» In such cases the length of insert is very important for proper closing of moulding die. We maintain length of such inserts within tolerance of -0.05mm.
» Thread Size Starts from M2 to M50, BA, BSW, BSPT, and BSF & American Threads like UNC, UNF, UNEF, and NPT are also available as per custom requirements.

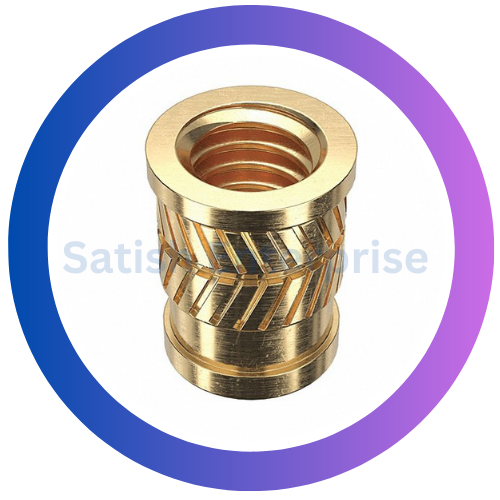

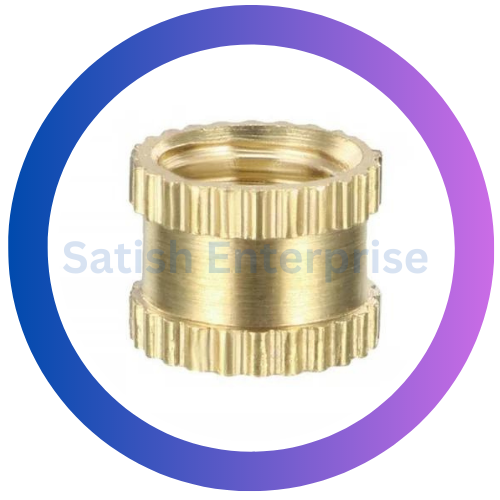

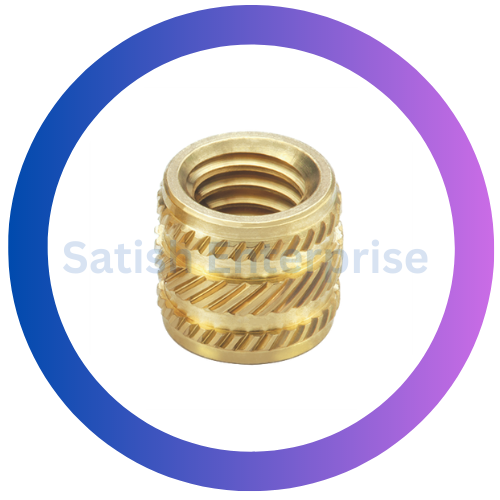

» Straight, Diamond, opposite diagonal etc. are the knurling options available to give solid gripping to Molding applications.
» Inserts with collar series provides Options to use Flange to make Electric Contact
» Opposing Diagonal Knurls provide excellent Torque Resistance.
» Vertical Undercuts in Tri Series Provides superior Tensile Strength
» Blind thread or closed bottom Inserts prevents plastic from entering the bottom of the insert.

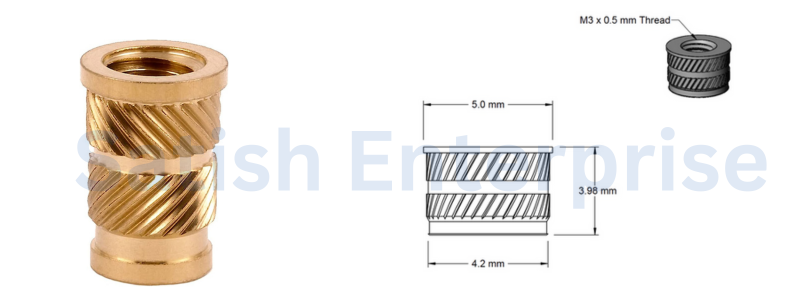

| Thread Size |
Length (L) |
ØH | T | Pilot Hole |
|---|---|---|---|---|
| M2 | 3.9 | 4.8 | 0.43 | 3.2 |
| M2.5 | 4.7 | 5.5 | 0.51 | 4.0 |
| M3 | 4.7 | 5.5 | 0.51 | 4.0 |
| M3.5 | 6.3 | 6.4 | 0.66 | 4.7 |
| M4 | 7.9 | 7.1 | 0.82 | 5.5 |
| M5 | 9.4 | 7.9 | 0.99 | 6.3 |
| M6 | 12.6 | 9.5 | 1.25 | 8.0 |
| M8 | 12.6 | 11.1 | 1.25 | 9.6 |
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
