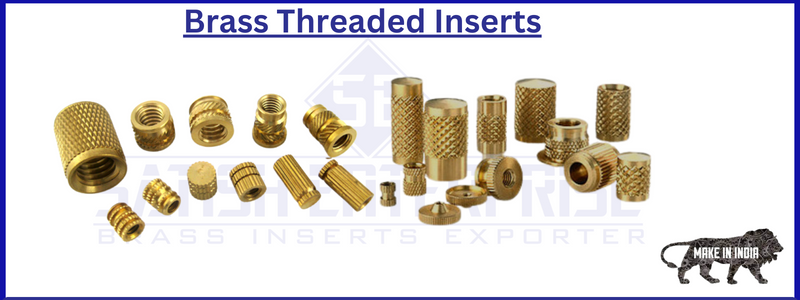

Brass Threaded Inserts
We are the leading producer of Brass Threaded Inserts for use in enclosures for electrical and wire devices, computers, plastic injection moulding, communication equipment, and automotive applications. We offer a full selection of brass inserts for all installation methods, including ultrasonic, heat, thermal, press-in, and mold-in.
The threaded insert series we offer includes straight hole, blind (closed bottom), collar inserts, ultrasonic, press-in, and tri-slotted inserts, among others.
We also make a variety of brass inserts depending on customer design and specifications. We offer these components in a range of sizes and specifications. Initially, you will supply the drawing or model, and we will handle the rest.
Also Available:
- Brass Round Knurled Inserts
- Brass Hex Inserts
- Brass Square Inserts Type of Insert
- Brass Threaded Inserts
- Threaded Brass Inserts
- Knurled Threaded Inserts
- M5 & M6 Brass Insert
Also Available Size:

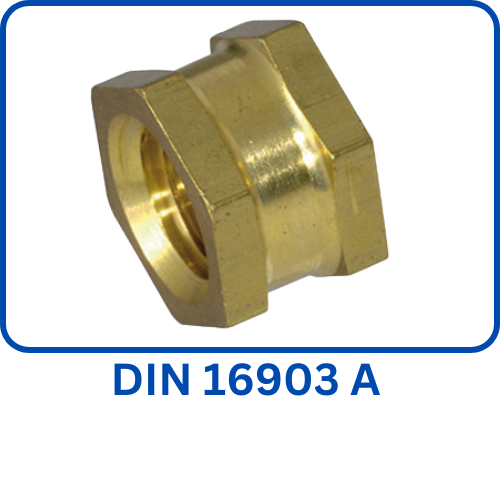

- DIN 16903 A
- DIN 16903 B

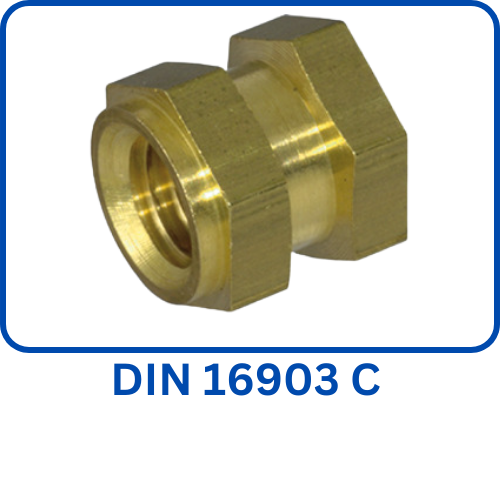

- DIN 16903 C

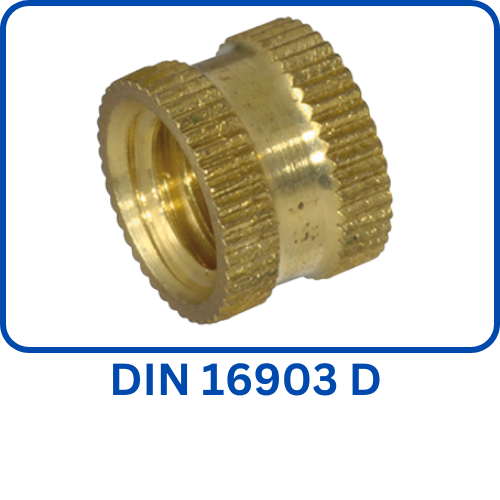

- DIN 16903 D

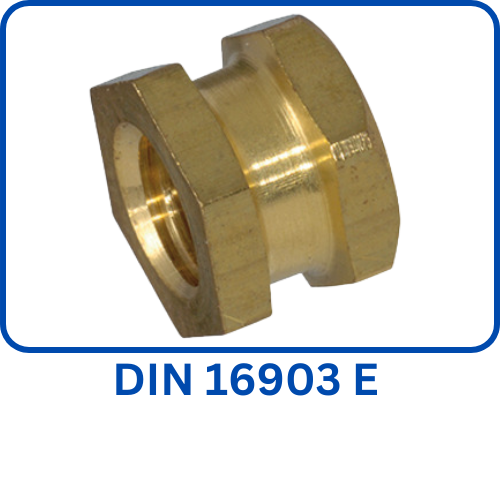

- DIN 16903 E

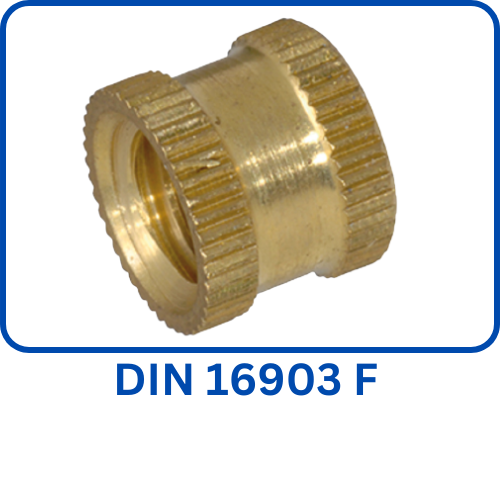

- DIN 16903 F

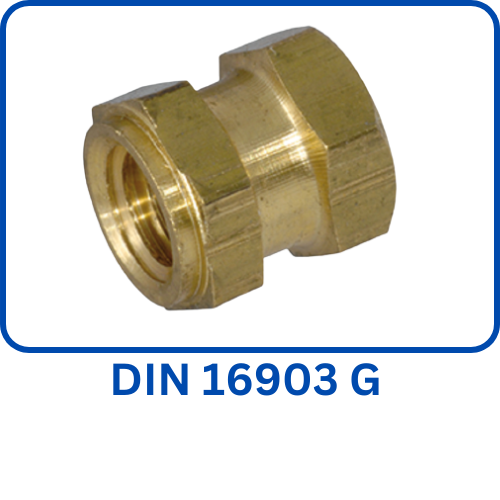

- DIN 16903 G

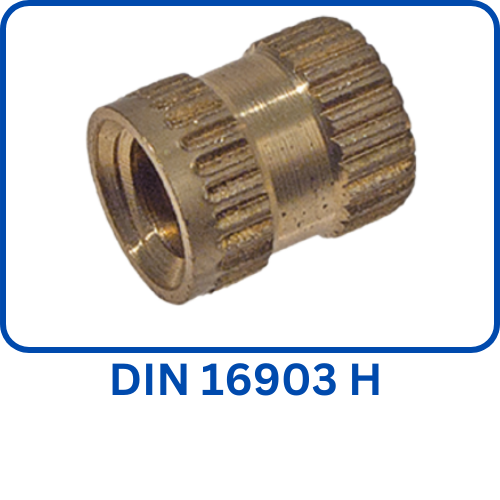

- DIN 16903 H

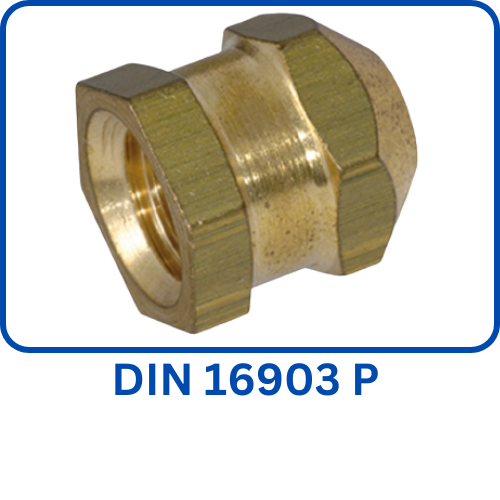

- DIN 16903 P

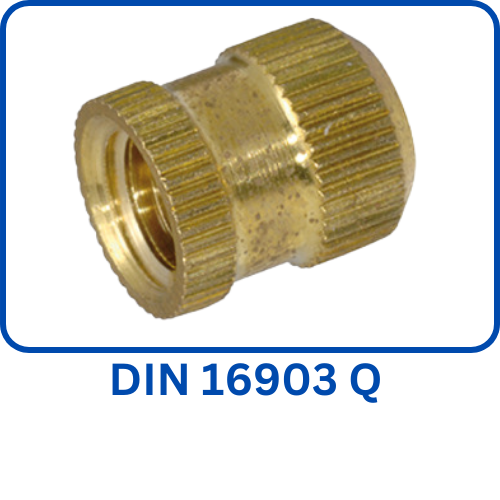

- DIN 16903 Q

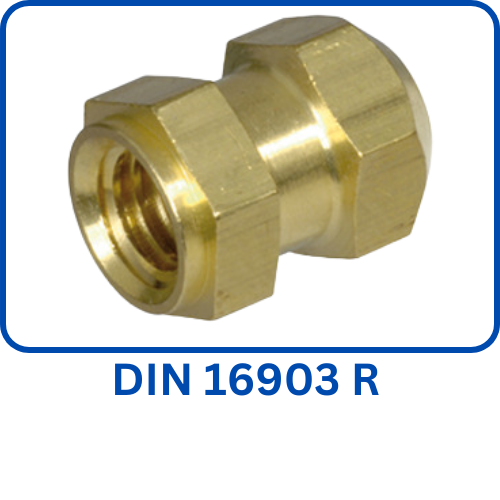

- DIN 16903 R

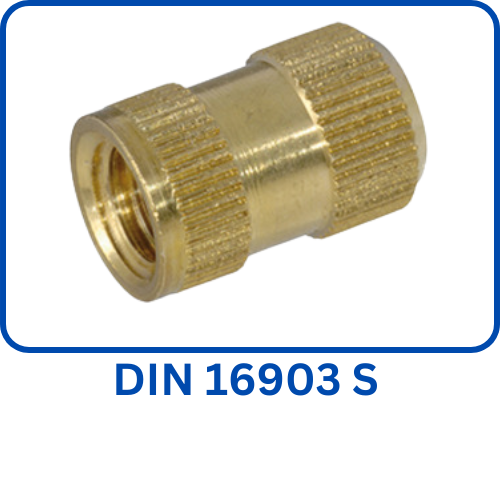

- DIN 16903 S
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Specification of Brass Threaded Inserts
Threads:
- ISO Metric (MM Threads)
- BA Threads
- BSW Threads (Inches)
- UNC, UNF Threads
Knurling Available:
- Diamond
- Straight
- Unidirectional
- Both blind and through inserts are available

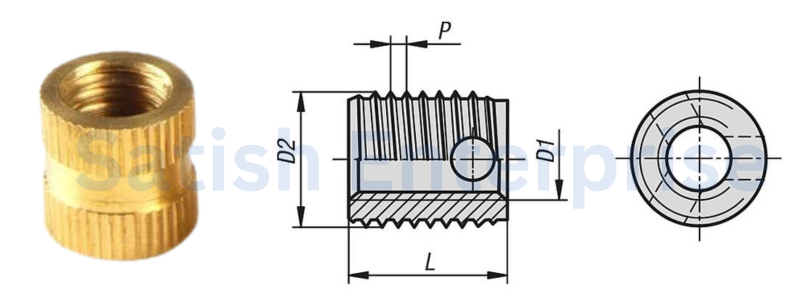

Different Size Brass Threaded Inserts
| Thread Size | Length (L) | ØH | ØD | T | Pilot Hole |
|---|---|---|---|---|---|
| M2 | 4.0 | 4.8 | 3.35 | 0.6 | 3.1 |
| M2.5 | 5.3 | 5.6 | 4.4 | 0.6 | 3.8 |
| M3 | 5.3 | 5.6 | 4.2 | 0.6 | 4.2 |
| M3.5 | 6.3 | 6.4 | 5.0 | 0.8 | 4.6 |
| M4 | 7.4 | 7.2 | 5.8 | 0.8 | 5.4 |
| M5 | 8.3 | 8.0 | 6.6 | 1.0 | 6.2 |
| M6 | 9.2 | 9.5 | 8.2 | 1.3 | 7.8 |
| M8 | 9.2 | 11.0 | 9.7 | 1.3 | 9.3 |
| M10 | 9.2 | 14.0 | 12.0 | 1.6 | 11.6 |
Finishing and Plating:
- Natural, Nickel Platted, Chrome Platted, Tin Plated or any coating as per customer needs and requirements.
Sample Time: Available in 5-10 days for different items.
Drawing Format: CAD / PDF / DWG / IGS / STEP.
Packaging: Standard package, Carton box or Pallet, As per customized specifications
Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.
Advantages
1. Processing: High quality brass rods material, cold cut and hot forge processing, compact structure without Defect. All the products were 100% tested.
2. Process: Cold cut, hot forge processing, shot blasting, fine finishing, nickel plated, testing and packing
3. Unique heat treatment technology to secure fast connect.
4. Surface treatment: Natural color of brass, Nickel plated, Chrome plated, Zinc plated etc
5. OEM service is acctable
6. We produce according to customers’ design
7. Applicable field: PPR Pipes&Pipe Fittings, PE-RT Pipes&Fittings, PE Fittings, HDPE fittings, PVC fittings,Faucet Water supply system.
8. Widely used in building materials industry, appliance industry, bathroom industry,machinery industry and other industry.
9. We deal in many kinds of mould and machine parts.
We can manufacture and export Brass Products as per specifications (custom drawing and samples) for more information, please
