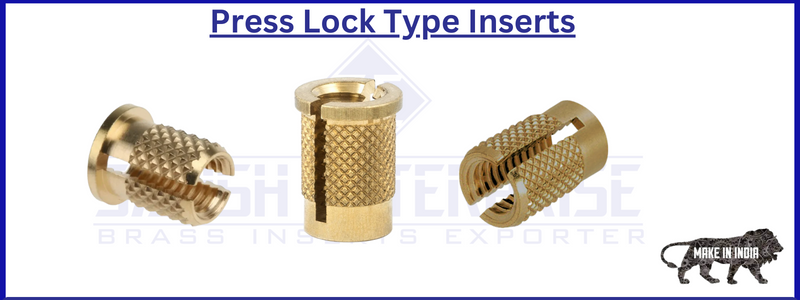

Press Lock Type Inserts

We offer premium quality Press Lock Type Inserts with different sizes, shapes, threads, and finishes as per customer’s needs and requirements. Our press inserts are designed for post-molding installation in both thermoplastic and thermoses plastics. It requires to vary low screws installation torque and has self-locking action.

For cold type installation and high torque pull out and pull in resistance we provide slotted design in diamond knurled which is highly demanded by our patrons. These cold installations reduce the cost of moldings and eliminate chase after molding.

It is a sort of press-in expansion. Chrome Inserts, Type Press Lock For usage in thermoplastic moulding, brass inserts are available.It features a self-locking mechanism and needs relatively modest screw installation torque. Brass Inserts, Brass Inserts of the Press Lock Type, Injection Molding Inserts of the Tappex Emhart type injection Molding Insert Moulding.

Specification Press Lock Type Inserts

Brass Press Lock Type Insert Threads :

• ISO Metric (MM Threads)
• BA Threads
• BSW Threads (Inches)
• UNC, UNF,UNEF and NPT Threads
• BSP & BSPT (Parallel & Taper Threads)
• Any threads as per specifications

Size :

• M2 , M3 , M3.5 , M4 , M5 , M6 , M8 , M10 , M12 , M16 , M20 , 1/8″ , 5/32″, 3/16″, 1/4″, 5/16″ , 3/8″ , 1/2″ , 3/4″ , 1″ in Metric BSW , BSF , BSP , R , G , UNC , UNF , NPT , NPSM, NPTF , FPT Threads.

Brass Press Lock Type Insert Material :

• Free Cutting Brass IS 319 Type (l)
• Free Cutting Brass as per BS 249 Type (I)
• Generally Free Machine Grade of CuZn37Pb3 equivalent to BS 2874 is used to manufacture various brass threaded inserts in form of round, Hexagon, Square etc
• Other grades which are followed as per custom requirements are CZ 121, CZ 131, C3604, CDA 360, and DTD 627 etc
• High Grade Free Cutting Brass.
• Any Special Brass Material Composition as per customer’s requirement

Brass Press Lock Type Insert Threads :

• ISO Metric (MM Threads)
• BA Threads
• BSW Threads (Inches)
• UNC, UNF,UNEF and NPT Threads
• BSP & BSPT (Parallel & Taper Threads)
• Any threads as per specifications

Brass Press Lock Type Insert Finishing & Coating :

• Natural
• Golden Finish
• Silver Finish
• Nickle Platted
• Chrome Platted
• Tin Plated
• Any coating as per customer specifications

Brass Press Lock Type Insert Packing Details :

• Bag Packing,
• Inner Plastic Packing,
• Carton Packing,
• Wooden Carton Packing

Brass Press Lock Type Insert Special Features

• Thread as per international Go and Not Go Gauge Standard.
• Deep Groove for maximum Pull out Resistance.
• Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush to enter into brass inserts.

Brass Press Lock Type Insert Application :

• It is press-in expansion type Brass Inserts Press Lock Type Brass Inserts insert designed for use in Thermoplastic molding.
• It requires vary low screws installation torque and has self-locking action Brass Inserts Press Lock Type Brass Inserts Tap Emhart type Injection Moulding Inserts.
• Plastic Industries
• Furniture Industry
• Electronic Industry
• Automobile Industry,etc.

Sample Time: Available in 5-10 days for different items.

Drawing Format: CAD / PDF / DWG / IGS / STEP.

Packaging: Standard package, Carton box or Pallet, As per customized specifications

Shipping: DHL, FEDEX, UPS and By Sea or as per client’s requirements.

We can manufacture and export Brass Products as per specifications (custom drawing and samples) for more information, please
